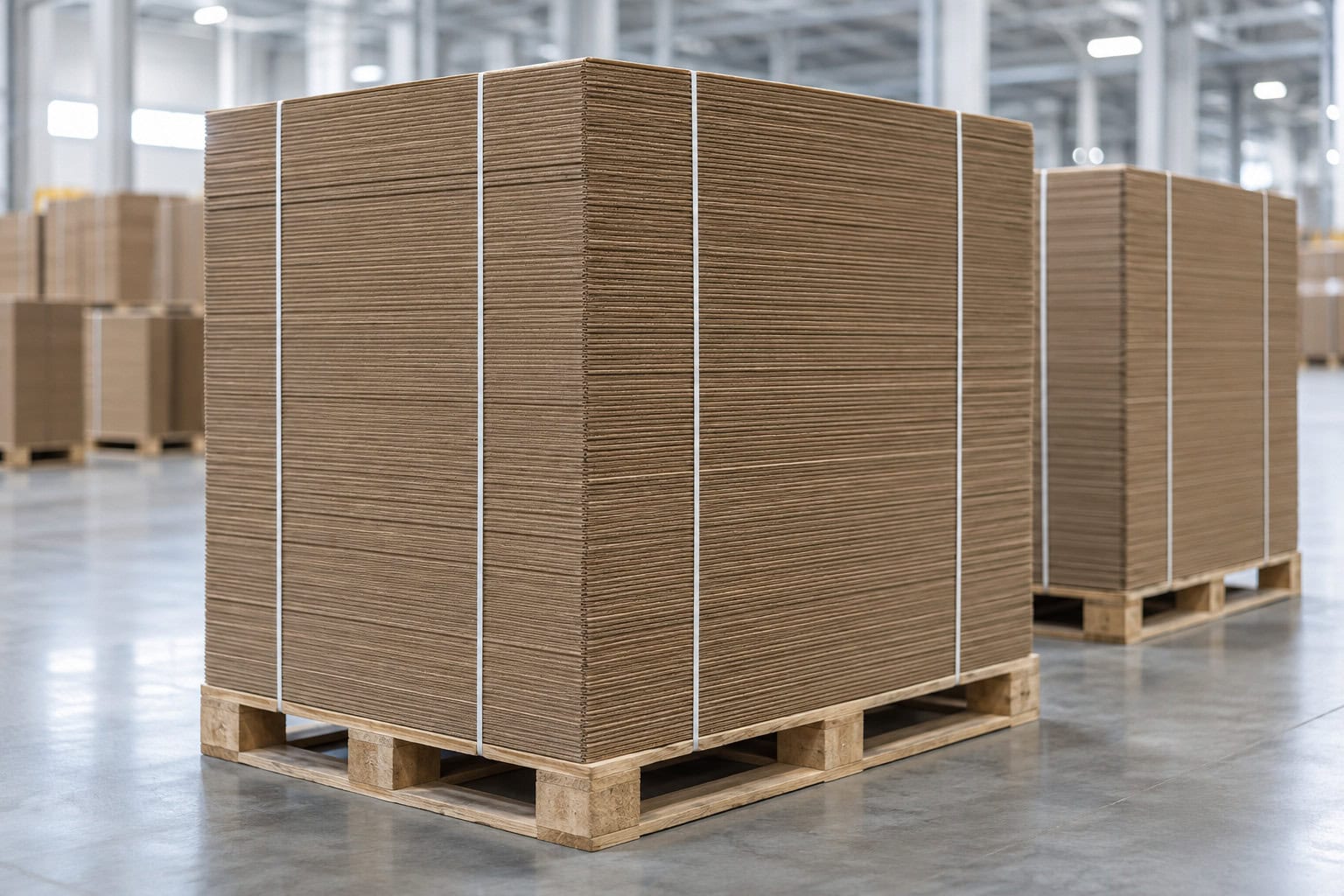

Haiwang supplies corrugated cardboard sheets in A, B, C and E flutes and 3-, 4- and 5-layer board, cut to your size on our 2,800 mm Marquip corrugator. Order plain sheets for your own box plant, pallet layer pads, or printed sheets ready to convert. We make 300,000 m² of board a day and ship flat from our factory near Qingdao Port.
A, B, C and E flutes in 3-, 4- and 5-layer board, for every corrugated carton sheet you convert.
Our Marquip line runs board up to 2,800 mm wide, for oversized boxes and large sheets.
Flat corrugated pads cut to your pallet size, to separate and protect layers of goods.
Escade anti-warp control and in-line quality monitoring keep every sheet flat and to spec.
We are a corrugated board producer first. Two lines make our corrugated board: a 2,800 mm Marquip line with Escade anti-warp control and in-line quality monitoring, and a 2,200 mm line running at up to 350 m/min. Both are built for short orders and frequent changeovers, so we run small trial orders and large volumes alike.
A smart logistics system moves board automatically from the corrugator to storage and dispatch, and our own fleet of 70 trucks handles delivery. We are FSC certified and run ISO 9001 quality management. Want finished boxes instead? See our printed boxes and dividers.
We reply within 24 hours.
Corrugated board made to your flute, wall and sheet size, as plain sheets, pads or printed sheets.
| Specification | Haiwang Corrugated Sheets |
|---|---|
| Flute types | A, B, C, E |
| Board construction | 3-layer, 4-layer and 5-layer corrugated |
| Sheet width | Up to 2,800 mm (Marquip line) · Up to 2,200 mm (high-speed line) |
| Sheet length | Cut to your size |
| Products | Plain sheets · Corrugated pads · Printed sheets |
| Flatness control | Escade anti-warp system · In-line quality monitoring |
| Water resistance | Optional, Cobb < 30 g/m² |
| Printing | Digital printing, no plates, no minimum run · Water-based flexo up to 4 colours |
| Line speed | Up to 350 m/min (2,200 mm line) |
| Daily capacity | 300,000 m² of board and boxes |
| Quality testing | ECT · RCT · FCT · PAT · CMT · CCT · Burst · Tensile |
| Certifications | FSC COC (SGSHK-COC-310706) · ISO 9001 · ISO 14001 · ISO 45001 · AEO |
| Delivery | Our own fleet of 70 trucks · Shipped flat from near Qingdao Port |
How we make heavy duty shipping boxes, from your drawing to delivery in four steps.
Send the flute, wall, sheet size and monthly volume. We confirm the board grade.
Sample sheets from production board, for you to test on your own converting line.
Run on our Marquip or high-speed line with in-line quality monitoring and anti-warp control.
Stacked flat and palletized, delivered by our own trucks or shipped from Qingdao Port.
Measures the stacking strength of the board edge.
Checks the flat crush strength of the fluted medium paper.
Checks resistance to puncture and internal pressure.
Verifies the strength of liner and medium papers.
Checks flute rigidity under flat pressure.
Ensures the liners and flutes stay bonded.
Answers to what buyers ask most before ordering corrugated cardboard sheets. Don’t see yours? Send us a message below.
It is a flat sheet of corrugated board, fluted paper glued between flat liners, before it is printed, cut and folded into a box. Box plants buy sheets to convert into their own cartons.
Up to 2,800 mm on our Marquip corrugator, and up to 2,200 mm on our high-speed line.
Yes. Every order is cut to the length and width you specify, within the 2,800 mm maximum width.

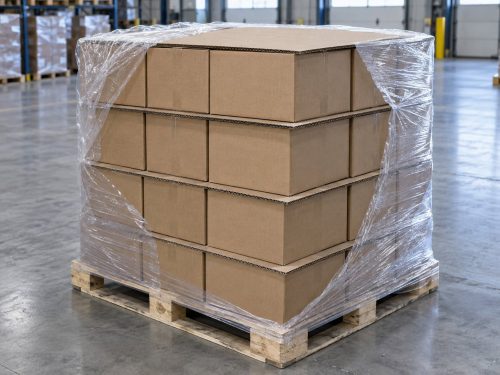

Yes. We cut flat corrugated cardboard pads to your pallet size, such as 48 × 40 in or 1,200 × 800 mm, to separate and protect layers of goods.
Yes. Choose our water-resistant board, Cobb < 30 g/m², for cold storage and humid routes.
Yes. We print and convert our own board into boxes, from heavy-duty shipping boxes rated up to 3,000 kg to printed cartons.
